DOME'L INC, High-Rise Balcony Doors

RETROFIT
(EXISTING APPLICATIONS)

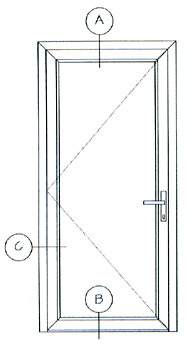

Typical Elevation - Exterior View

Typical Elevation - Exterior View

A. Door Head Detail

BACK TO TOP

B. Threshold Detail

BACK TO TOP
Door Jamb Detail

C. Door Jamb Detail

BACK TO TOP
D. General Information

Insulated glass doors as manufactured by Dome'l Inc., Clifton, New Jersey. Thermally insulated door and door frame will be fabricated from 6063-T5 extruded aluminum in standard Dome'l finish (clear anodized, bronze anodized, bronze or white painted). Custom finishes available upon request. Doors to have mitered corners, secured with corner keys, crimped and epoxy welded. Standard hardware includes 5 point lock, keyed cylinder deadbolt, thinline lever handles, adjustable offset pivot hinges and friction arm. Standard glazing will be 1" insulated clear tempered glass. See specifications for more details.

BACK TO TOP

PROJECT: NOTES:
LOCATION:
ARCHITECT:
CONTRACTOR:
DATE:
DIMENSIONS:
ALUMINUM FINISH:
GLAZING: For pricing information, please print and fax to:
